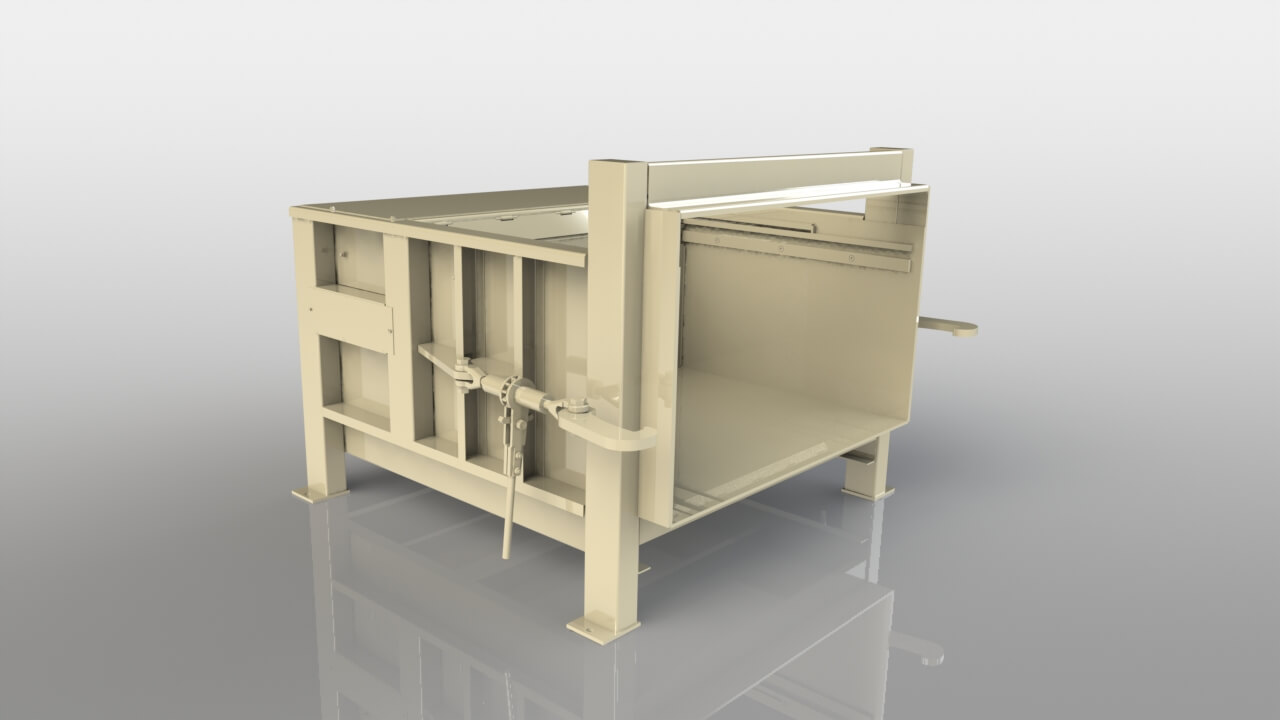

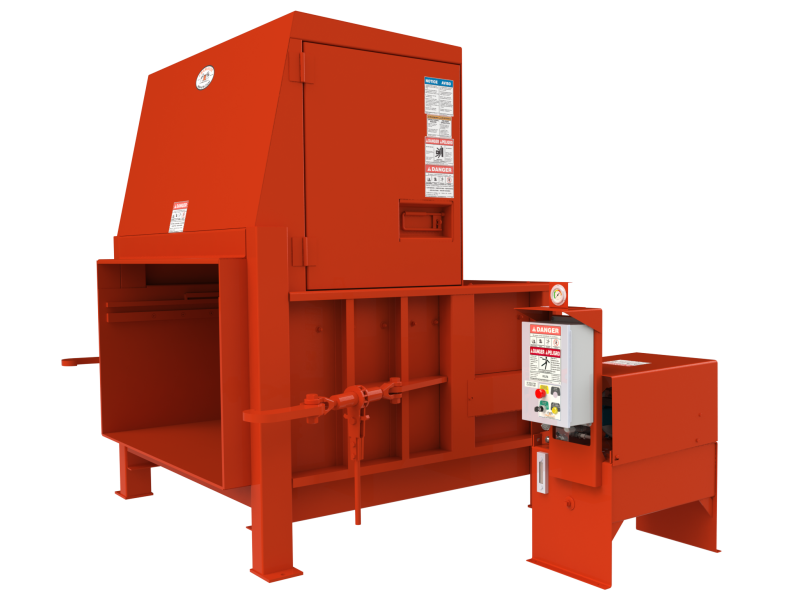

Space Saver Compactors

Cram-A-Lot CSX Series space saver stationary compactors (2 to 3 cubic yard capacities) are designed for low to moderate volume waste generators who are faced with space constraints at the desired compactor location. These space saver machines are also well suited for through the wall installations where the machine will be oriented to feed over the back, or dock mount installations where the back of the machine will be set against a loading dock. These machines can also be used to isolate and compact recyclable materials such as cardboard and plastic where a baler is not suitable or practical. Our products are designed to require minimal maintenance and repair to limit the disruption to your operations. Our hydraulic power units are designed and manufactured "in house" so we can maintain complete quality control from system design through manufacturing completion. Each machine is optimally designed for its intended application, with steel reinforcement in the areas that see the highest force, for long term durability. All Cram-A-Lot compactors feature a floor riding ram design, which minimizes the maintenance associated with guide shoe adjustment, and prevents trash from migrating behind the presshead. This attention to robust design ensures that your compactor will be built to last for years to come.



Standard Features Include:

  • Made in the USA
  • UL Listed Control Panel
  • ANSI Z245.2 Compliant
  • Remote Power Unit w/ Weather Cover
  • Nema 4 Rated Controls with Key-Lockable Start Switch
  • TEFC Electric Motor
  • Oil Sight Gauge
  • Spin-On Oil Filter Cartridge
  • Floor Riding Ram Design with UHMW Tail Guides
  • Turnbuckles & Container Hooks
Request a Quote
  • SPECIFICATIONS
  • OPTIONS
  • WARRANTY
  • GALLERY
Space Saver Compactor Steel Options
Angle Guides
Channel Guides
Breaker Bar Teeth (Fixed or Hinged)
Space Saver Compactor Electrical & Hydraulic Optionss
75% & 100% Full Lights Combined
Color Coded Pressure Gauge (Power Unit Mounted or Field Mounted)
Full Remote Controls, 15’ Lead (Four or Six operators)
Multi-Cycle Operation, 3 Cycles (with or without selector switch)
Hold To Run
Internal Hydraulics Plumbed to Both Sides with Couplers
Hydraulic & Electric Couplers Located at Dump Door
Extra Length Power Unit Hose (15, 20, 25, 30ft)
Oil Heater
Oil Level Shutdown
Oil Temperature Shutdown
Biodegradable Oil
Hydraulic Oil & ATF Blend – 50%
Sonozaire Odor Neutralizer
Single Phase Voltage Option (5hp, 230V, w/ 2 Stage Pump)
Three Phase Voltage Options (208V, 230V, 460V, 575V)

CRAM-A-LOT® 1-2-3 Warranty
J.V. Manufacturing will furnish without charge:
1) All parts and labor expenses through the first year of ownership to remedy any faults proven to be the result of defective materials or workmanship.
2) All parts through the second year of ownership to remedy any faults proven to be the result of defective materials or workmanship.
3) All labor expenses through the third year of ownership to remedy any structural faults proven to be the result of defective materials or workmanship.
This warranty does not apply to any damage caused by negligence, misuse, modifications, alterations, or accidents by purchaser or third parties. Refer to operation manual for specific warranty coverage.
