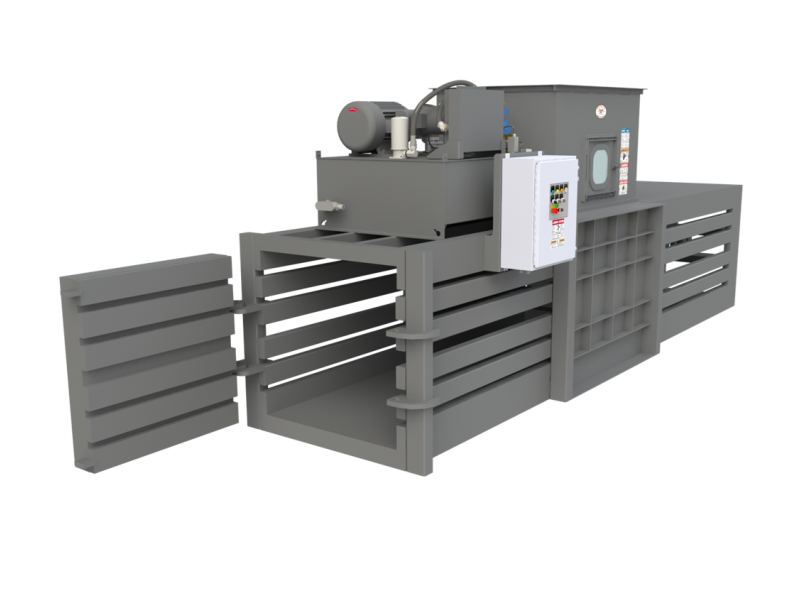

HH & HX Series Balers

The CRAM-A-LOT HX-60 HH & HX Series Balers is ideal for warehouses and designed for ease of installation, operation and maintenance.

The CRAM-A-LOT® HH & HX Series Balers is built with extra heavy duty construction and is ideal for warehouses and recyclers who deal with large quantities of corrugated and paper products. This machine is designed for long hours of operation and can operate either manually or automatically with photocell control. Optional custom engineered feed conveyors and cart dumper systems efficiently control baler feed rates for optimum performance in a complete baling system.

Standard features include:

  • ANSI Z245.5 Compliant - All compactors meet or exceed ANSI Z245.5 safety standards.
  • UL/CUL Listed Control Panels
  • UHMW Ram Shoes - Adjustable to assure straight tracking and readily replaceable, should the need arise
  • Oil Sight Gauge - Oil level at a glance
  • Oil Filter - Replaceable spin-on cartridge to keep your oil clean
  • Heavy Duty Controls - NEMA 4 rated pushbutton controls with key-lockable start switch
  • Automatic Single Cycle Operation

Power Unit Design & Construction:
The hydraulic power unit is the heart of any baler. While other manufacturers may source their power units right out of a parts house catalog, we have always designed and built our hydraulic power units in house, specifically for our application. Designing and building our own power unit is the only way we can guarantee the reliability and performance that our customers deserve.

Hydraulic Cylinders:
A horizontal baler’s hydraulic cylinders represent the single most expensive purchased component on the machine. Not only are the cylinders themselves expensive, but many hours of labor is required to remove and replace them if they fail. Given these facts, it would seem that all manufacturers would source a high quality cylinder to use in their machines, but unfortunately they don't. Because they're the highest cost component, this is one of the first areas considered when product managers and engineers are challenged by upper management to "cut costs". Some decide to change their specifications to a lighter duty design, others start importing lower cost cylinders from China.
At Cram-A-Lot, we have sourced our cylinders from the same supplier for over 20 years. Our cylinders are Made in the USA and our specification has remained the same. We design our cylinders to last. Cylinder design is not a good place to cut corners! Cost savings may be achieved, but only at the expense of reliability. Our customers deserve better! Just say "NO!" to cheap Chinese cylinders!

Request a Quote
  • SPECIFICATIONS
  • OPTIONS
  • PRODUCT BROCHURE
  • VIEW OPERATIONAL VIDEO
  • WARRANTY
  • GALLERY
HH & HX Series Steel Options
Left or Right Hand Hinged Chamber Door
Tack-On Temporary Hopper
42” Hopper with Access Door & Interlock
HH & HX Series Electrical & Hydraulic Options
Remote Power Unit, 30hp Motor (for HX-72)
Upper Photocell Conveyor Shut Down
Oil Cooler
Oil Heater
Biodegradable Oil
Hydraulic Oil & ATF Blend – 50%
Three Phase Voltage Options (208V, 230V, 460V, 575V)
HH & HX Series Conveyors
30” Wide Conveyor – Length to Suit
38” Wide Conveyor – Length to Suit
48” Wide Conveyor – Length to Suit

Click here if you are having problems playing this video.

CRAM-A-LOT® 1-2-3 Warranty
J.V. Manufacturing will furnish without charge:
1) All parts and labor expenses through the first year of ownership to remedy any faults proven to be the result of defective materials or workmanship.
2) All parts through the second year of ownership to remedy any faults proven to be the result of defective materials or workmanship.
3) All labor expenses through the third year of ownership to remedy any structural faults proven to be the result of defective materials or workmanship.
This warranty does not apply to any damage caused by negligence, misuse, modifications, alterations, or accidents by purchaser or third parties. Refer to operation manual for specific warranty coverage.
