HE Series Balers

Request Information

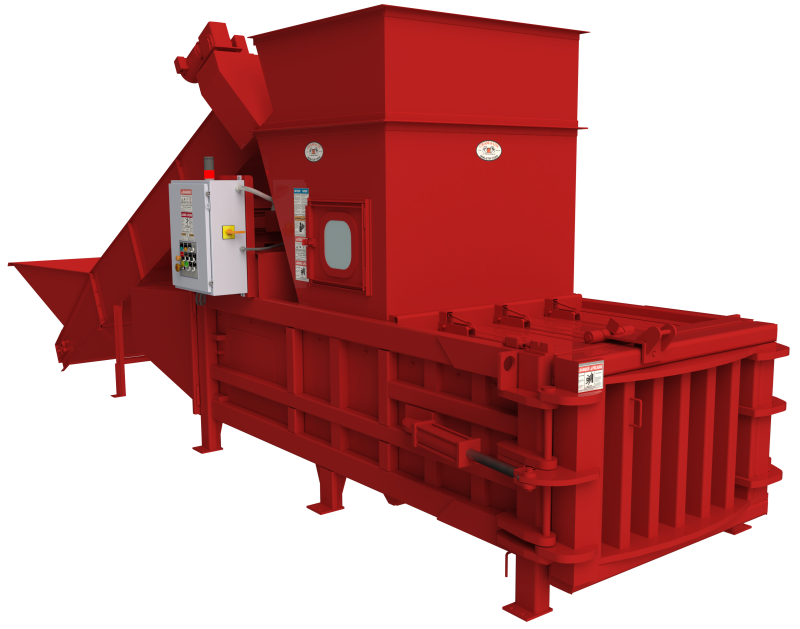

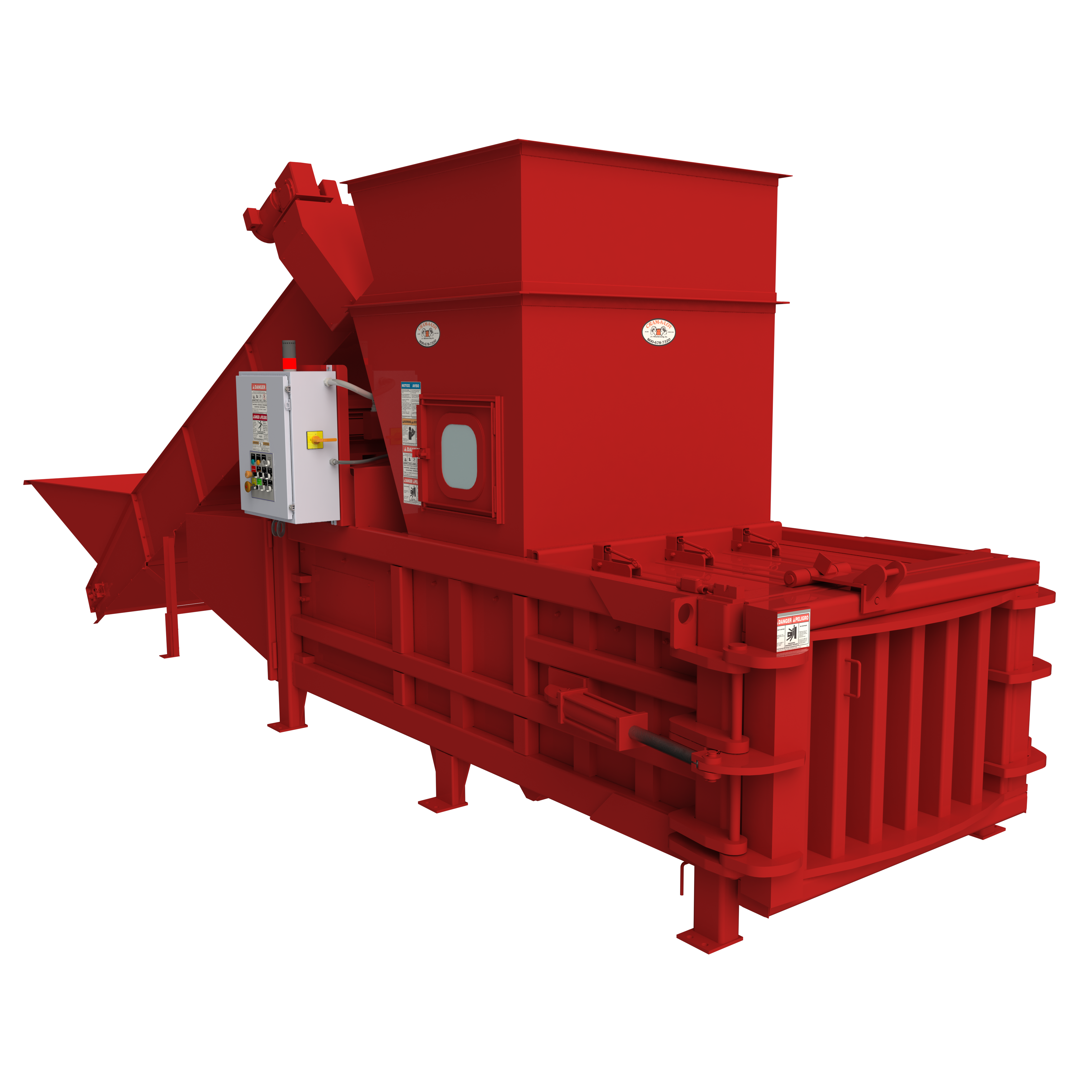

The Cram-A-Lot "HE Series” Horizontal Baler is designed with our largest clear top opening, almost 25% larger than our largest 72” Horizontal Baler and can be used with our without a conveyor system.

Designed for ease of installation, operation and maintenance the baler can operate manually or automatically with photo electric cell control. The HE-60 is ideal for warehouses, users baling waste paper, corrugated, newsprint, office white, plastics, foam rubber, light aluminum and other recyclables without pre-conditioning or fluffing required.

Standard features include:

  • ANSI Z245.2 Compliant - All compactors meet or exceed ANSI Z245.2 safety standards.
  • UL/CUL Listed Control Panels
  • UHMW Ram Shoes - Adjustable to assure straight tracking and readily replaceable, should the need arise
  • Oil Sight Gauge - Oil level at a glance
  • Heavy Duty Controls - NEMA 4 rated pushbutton controls with key-lockable start switch
  • Automatic Single Cycle Operation

    • Power Unit Design & Construction:
    The hydraulic power unit is the heart of any baler. While other manufacturers may source their power units right out of a parts house catalog, we have always designed and built our hydraulic power units in house, specifically for our application. Designing and building our own power unit is the only way we can guarantee the reliability and performance that our customers deserve.

    Request a Quote
    Request a Quote
    • SPECIFICATIONS
    • OPTIONS
    • PRODUCT BROCHURE
    • WARRANTY
    • GALLERY

    Download Specifications (PDF)
    HE Series Baler Steel Options
    Left or Right Hand Hinged Chamber Door
    Tack-On Temporary Hopper
    4 Sided Hopper, Flared to Rear with Access Door & Interlock
    HE Series Baler Electrical & Hydraulic Options
    Remote Power Unit
    Remote Power Unit, with 30hp Upgrade
    Oil Cooler
    Oil Heater
    Biodegradable Oil
    Hydraulic Oil & ATF Blend – 50%
    Three Phase Voltage Options (208V, 230V, 460V, 575V)
    HE Series Baler Electrical & Hydraulic Options
    48” Wide Conveyor w/ Hopper, 18’ Length
    48” Wide Pit Conveyor, 27’ Length

    Download Brochure (PDF)

    CRAM-A-LOT® 1-2-3 Warranty
    J.V. Manufacturing will furnish without charge:
    1) All parts and labor expenses through the first year of ownership to remedy any faults proven to be the result of defective materials or workmanship.
    2) All parts through the second year of ownership to remedy any faults proven to be the result of defective materials or workmanship.
    3) All labor expenses through the third year of ownership to remedy any structural faults proven to be the result of defective materials or workmanship.
    This warranty does not apply to any damage caused by negligence, misuse, modifications, alterations, or accidents by purchaser or third parties. Refer to operation manual for specific warranty coverage.
